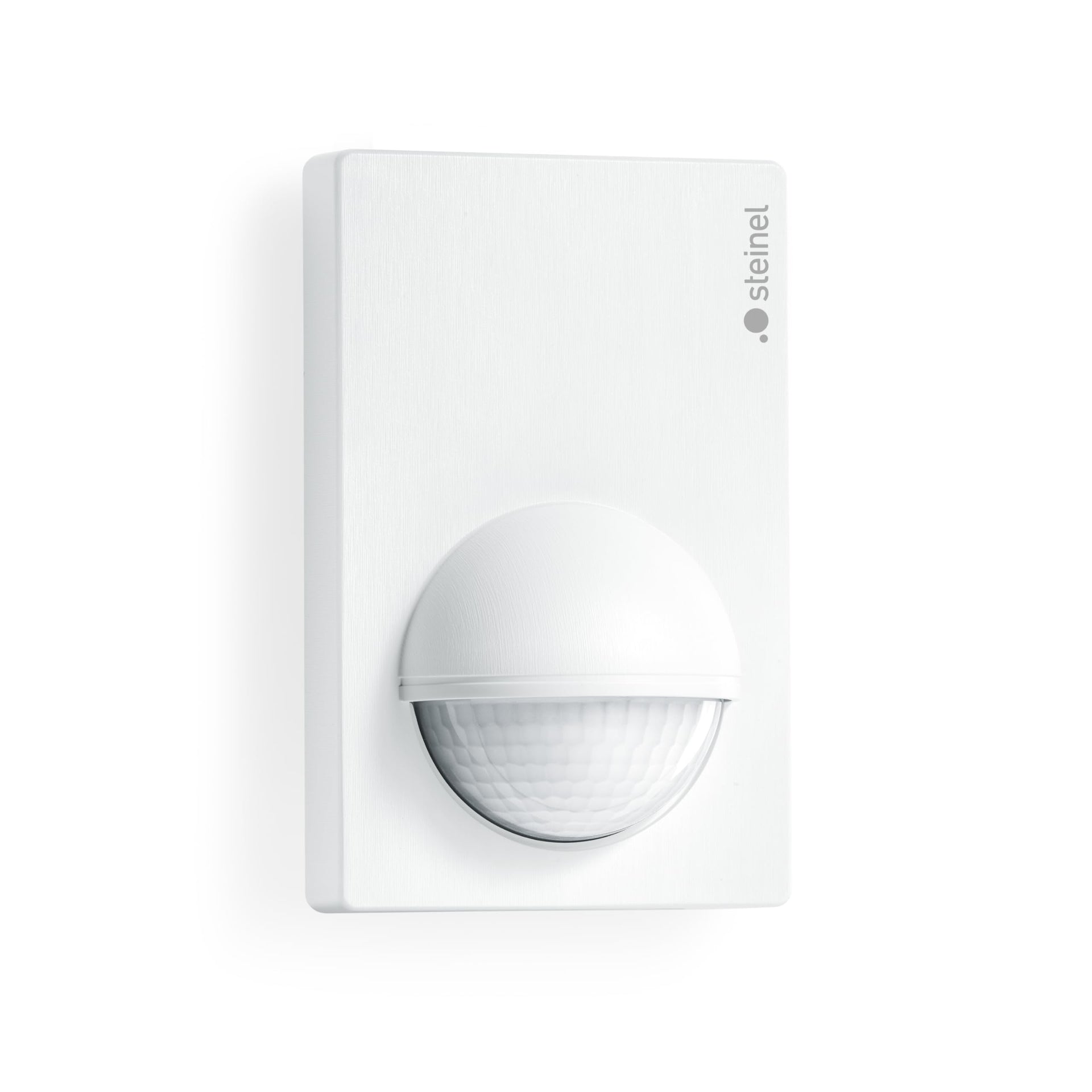

Steinel motion detector IS 180-2 white, 180° passive infrared motion sensor, twilight sensor for indoor and outdoor use, (W x H) 76 mm x 120 mm - 603212

Product Description

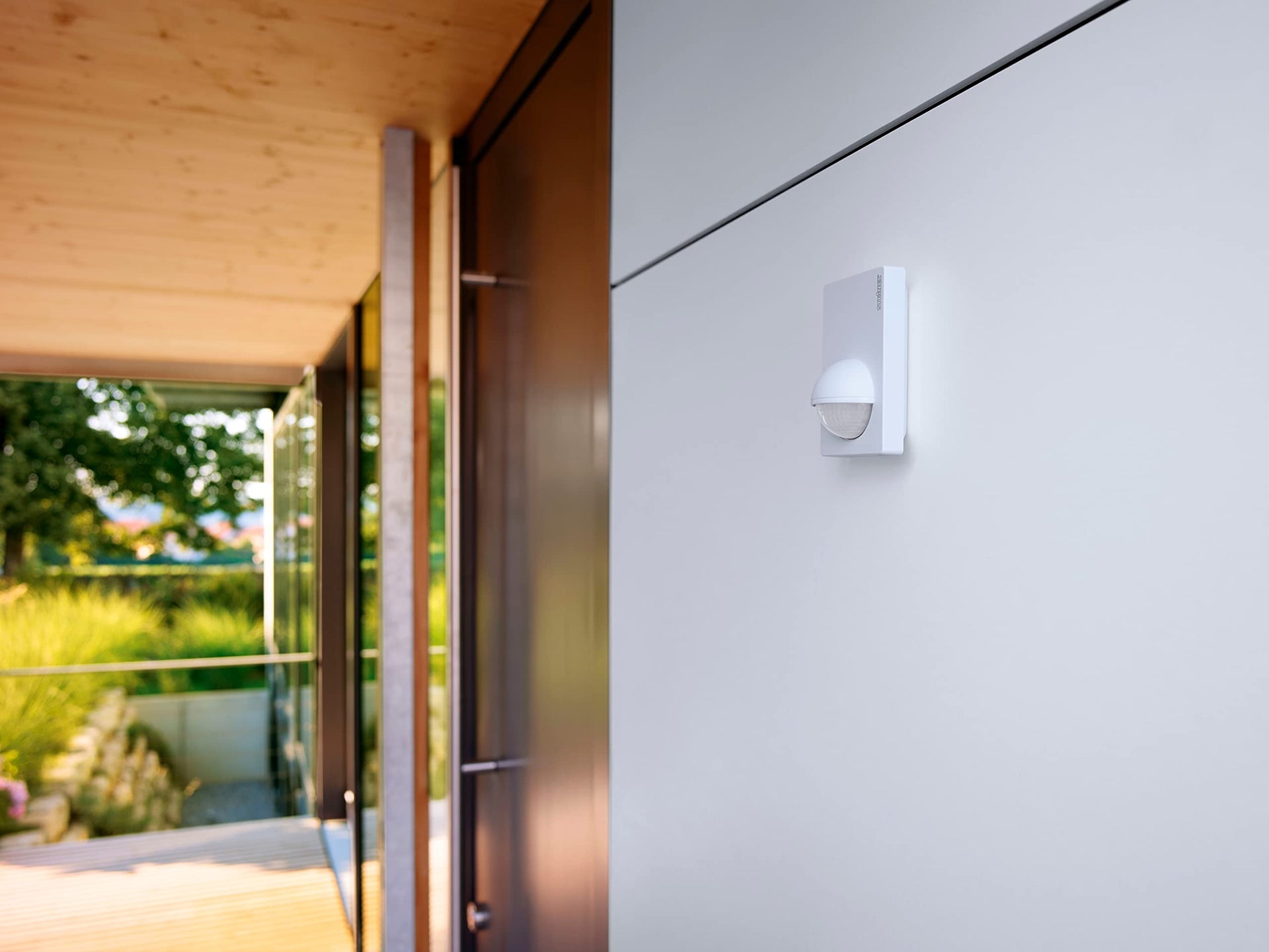

A smart unit. In form and function. The elegant infrared motion detector IS 180-2 combines the latest sensor technology with a modern design language into a harmonious unit. It features two highly sensitive infrared detectors arranged at a special angle to each other, allowing for seamless monitoring of large areas up to 200 m² – both indoors and outdoors, including large house fronts, driveways, gardens, and courtyards, as well as hallways or basements. The range can be adjusted by rotating the multi-lens to a maximum of 12 m or a maximum of 5 m. Additionally, the detection area can be limited and adapted to local conditions using the included cover caps. The time and twilight threshold can be adjusted continuously using rotary controls. The spacious, clear connection area ensures easy wiring and installation. The supply line can be installed as surface-mounted or flush-mounted. An angled wall mount for uncomplicated corner installation is included.

Set includes:
- Motion detector
- Instruction manual
- Angled wall mount
- Cover caps

Set includes:
- Motion detector
- Mounting materials
- Cover cap
- Instruction manual

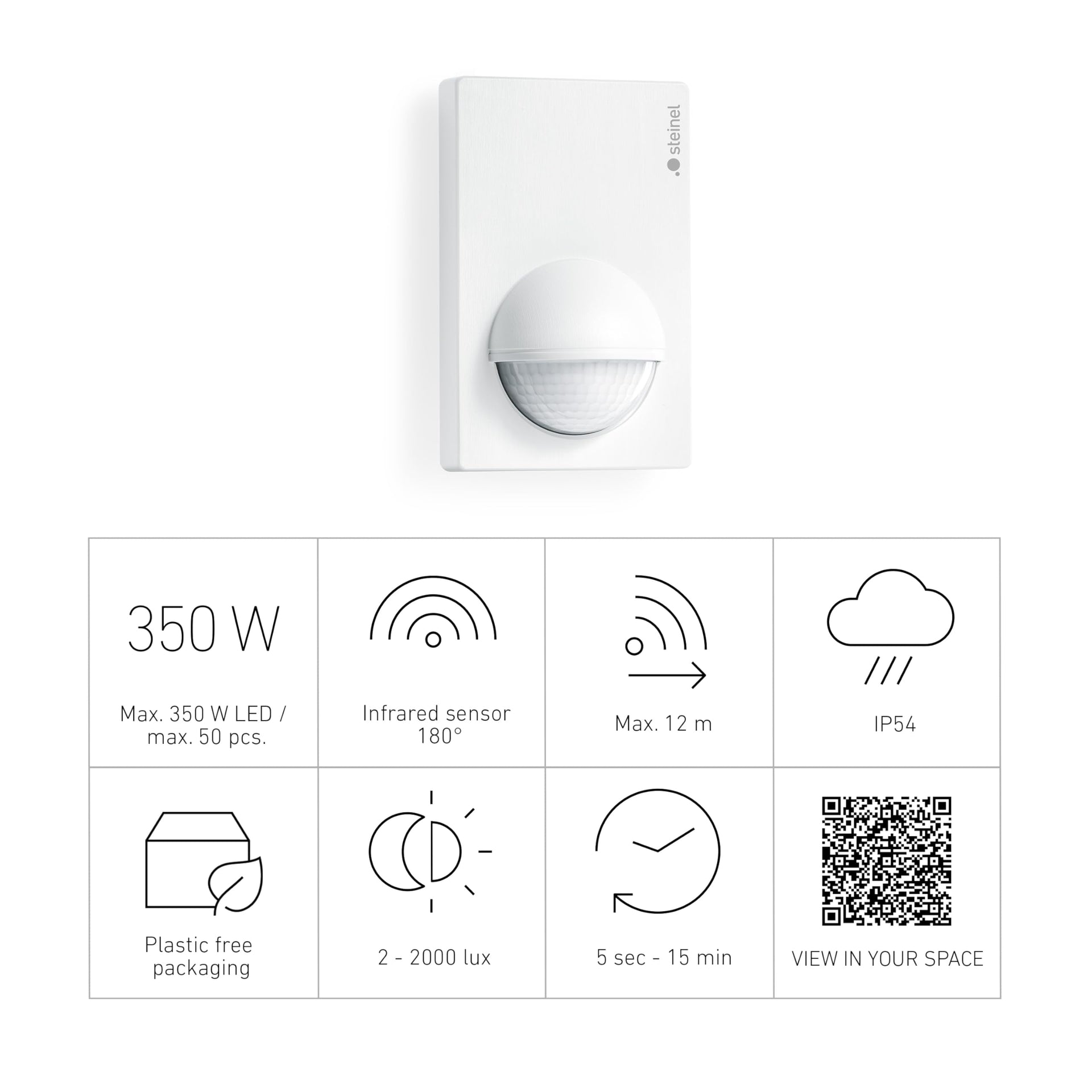

• Highly sensitive infrared pyrosensors enable continuous monitoring with a switching load of up to 1000 W (max. 350 W LED / 50 units), suitable for both indoor and outdoor use.

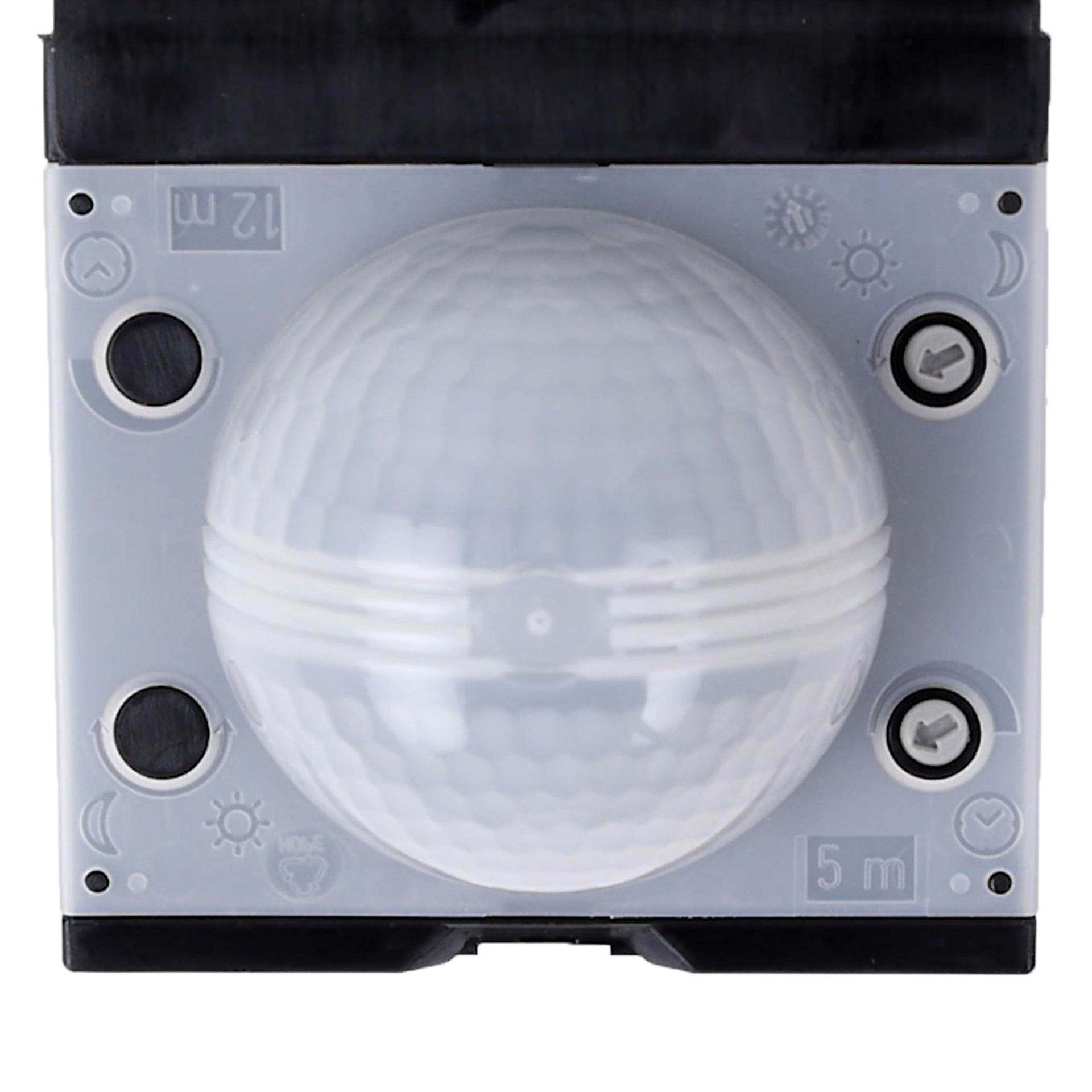

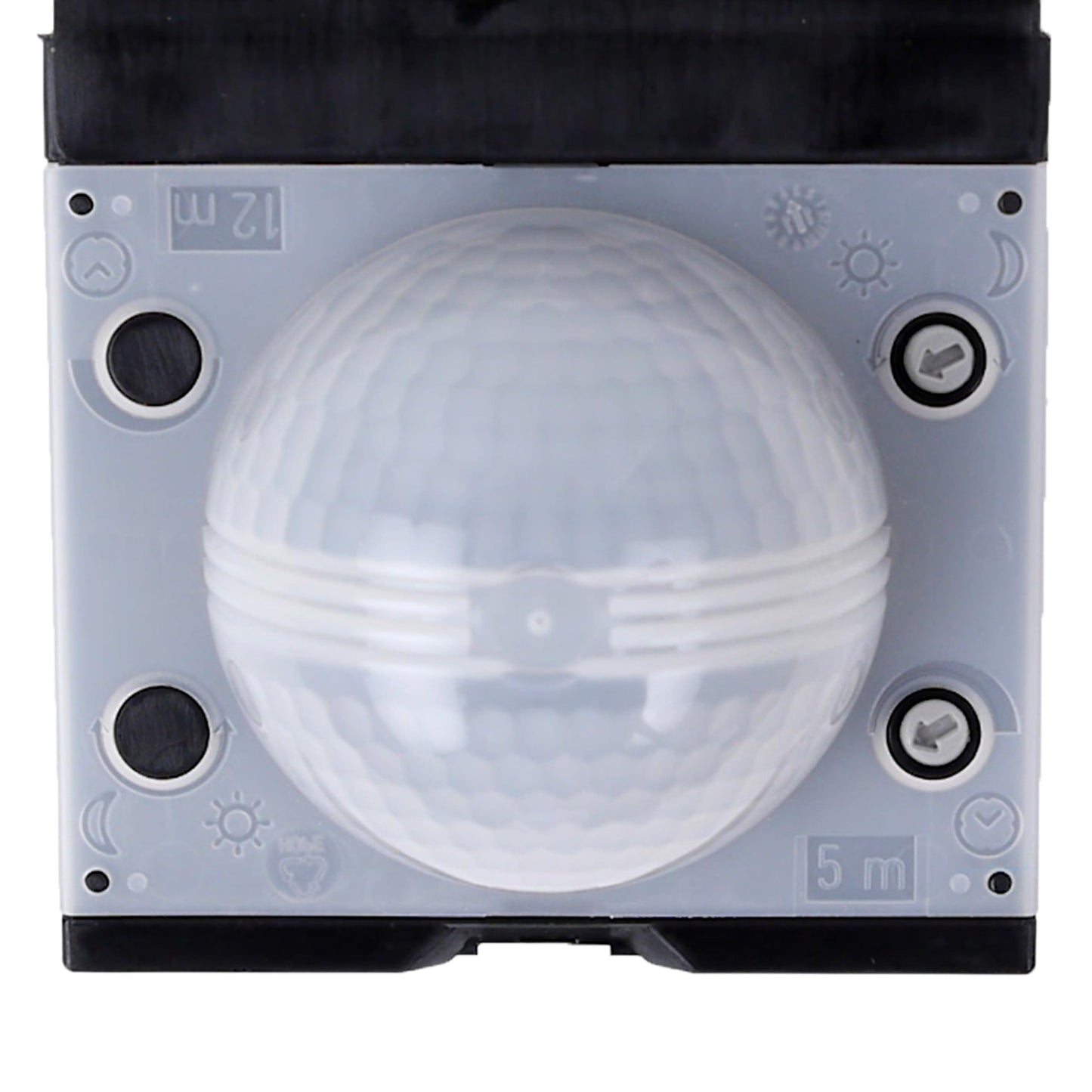

• The range can be adjusted by rotating the multi-lens to a maximum of 12 m or a maximum of 5 m. The time (5 s - 15 min) and twilight threshold (2-2000 lx) can be continuously set using rotary knobs.

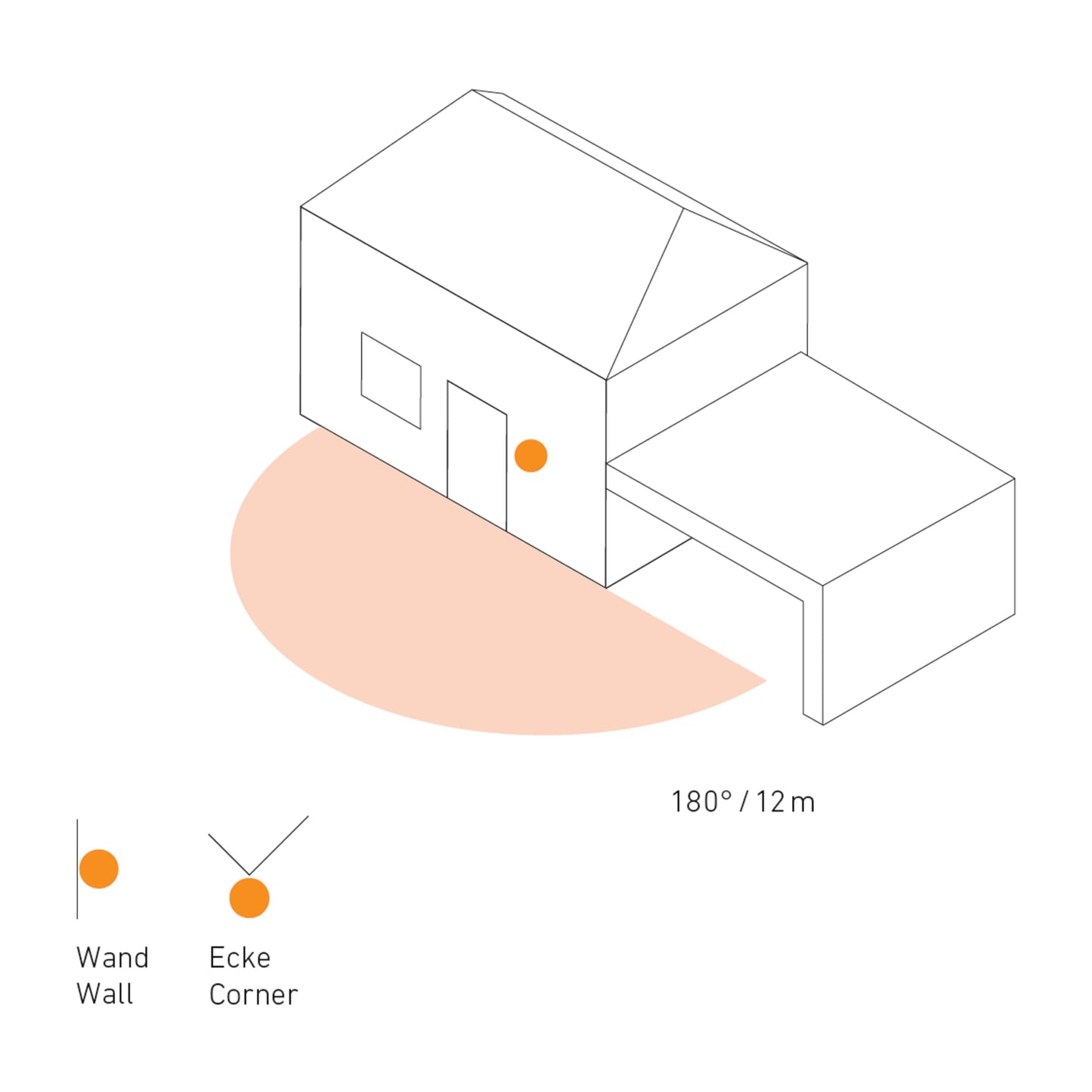

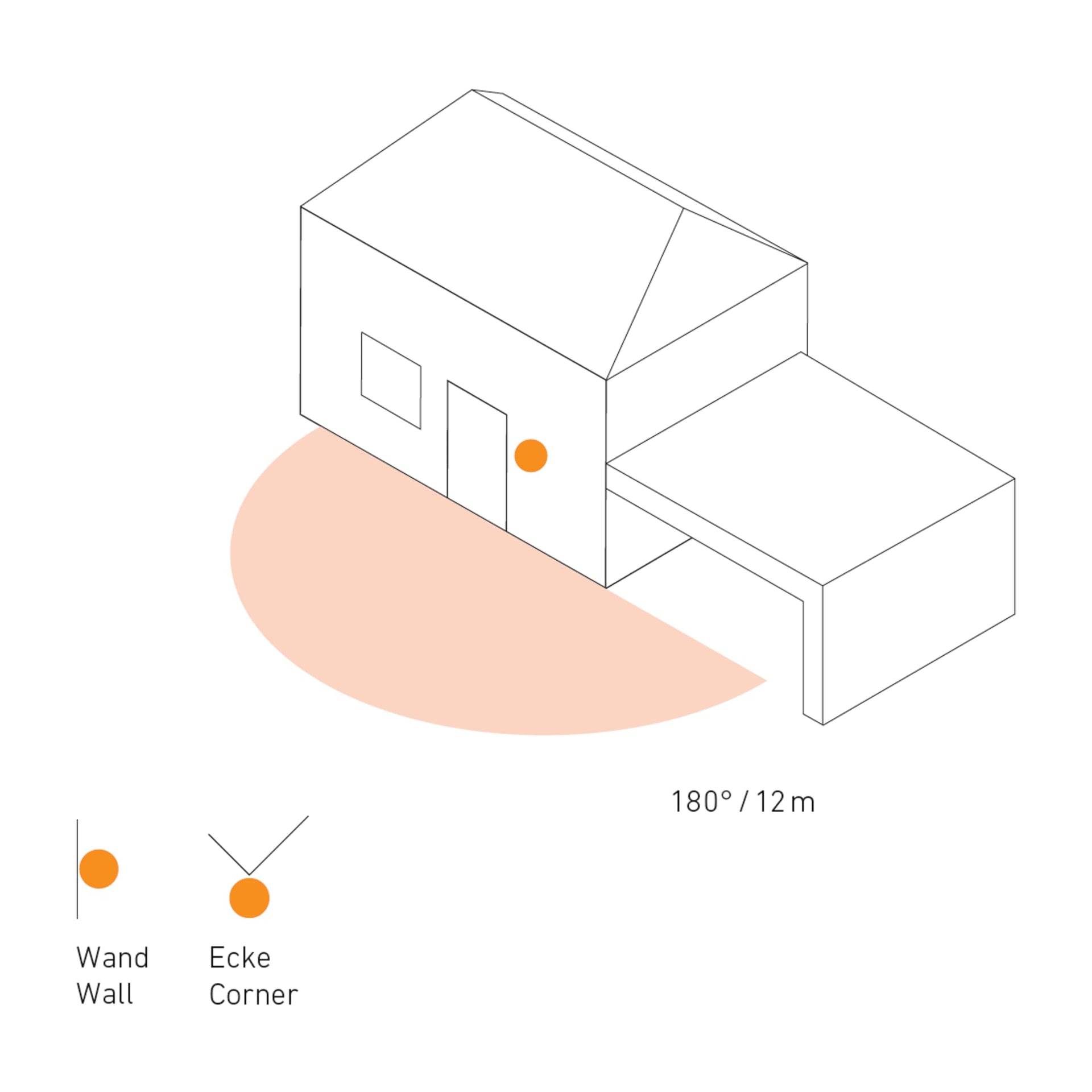

• The 180° detection range of the LED motion sensor can be limited using the included cover plates.

• The clearly arranged connection area ensures easy installation, both surface-mounted and flush-mounted.

• Package contents: Mounting materials (2x screws, 2x dowels, sensor cover plates); Dimensions (L x W x H): 5.6 x 7.6 x 12 cm; Weight: 0.13 kg; Power supply: 230–240 V / 50 Hz; Article number: 603212

Category: Motion detector
