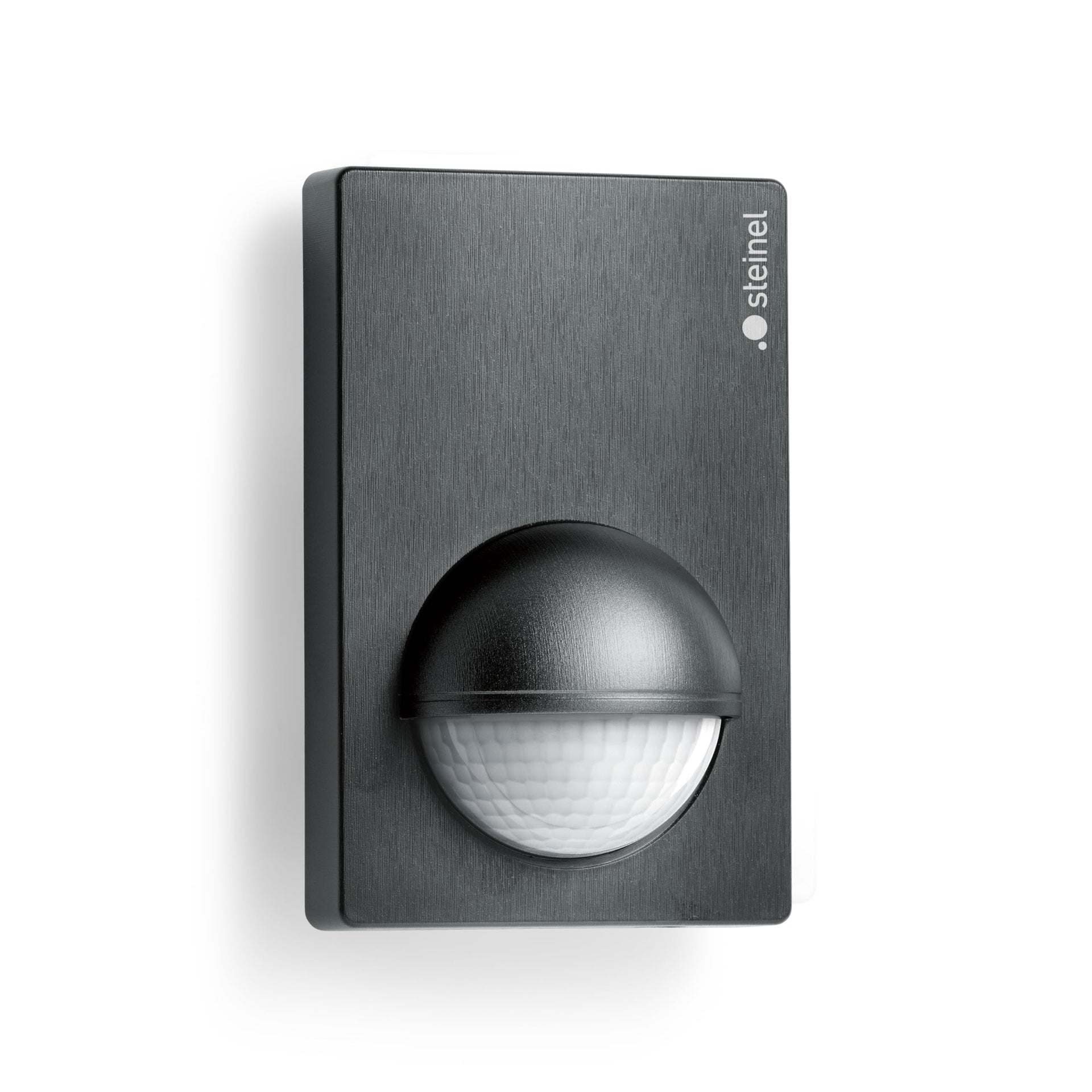

Steinel motion detector IS 180-2 black, 180° infrared motion sensor, twilight sensor for indoor and outdoor use - 603113

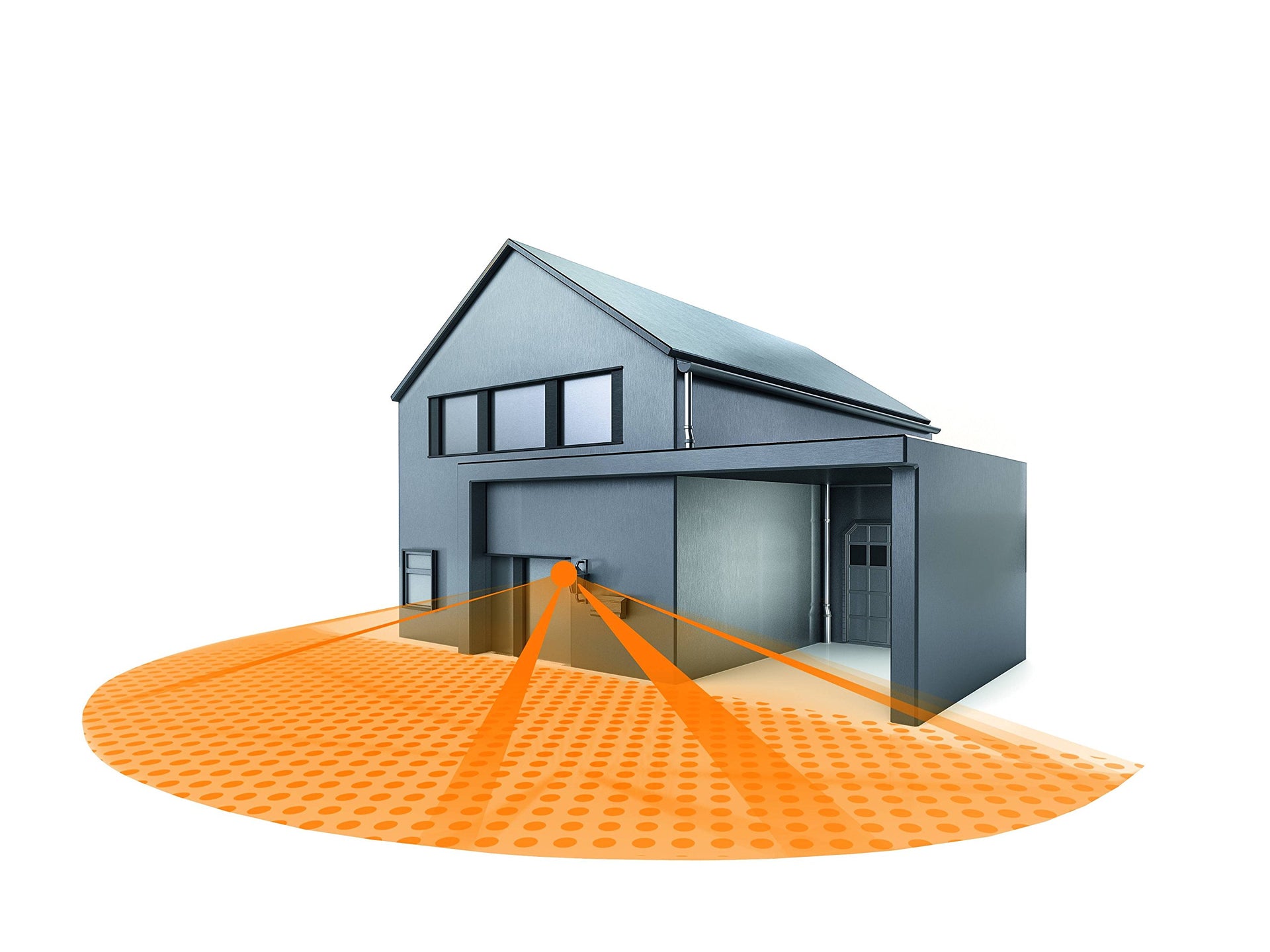

An intelligent unit. In form and function. The elegant infrared motion detector IS 180-2 combines the latest sensor technology and modern design language into a harmonious unit. It features two highly sensitive infrared detectors arranged at a special angle to each other, allowing for seamless monitoring of large areas up to 200 m2 – both indoors and outdoors, covering large house fronts, driveways, gardens, and courtyards as well as hallways or basements. The range can be adjusted by rotating the multi-lens to a maximum of 12 m or a maximum of 5 m. Additionally, the detection area can be restricted and adapted to local conditions using the included cover plates. Time and twilight thresholds can be adjusted continuously via rotary controls. The spacious, clear connection area ensures easy wiring and installation. The supply line can be installed either surface-mounted or flush-mounted. A corner wall bracket for uncomplicated corner mounting is included.

Set includes:

• Motion detector
• Instruction manual
• Corner wall bracket
• Cover plates

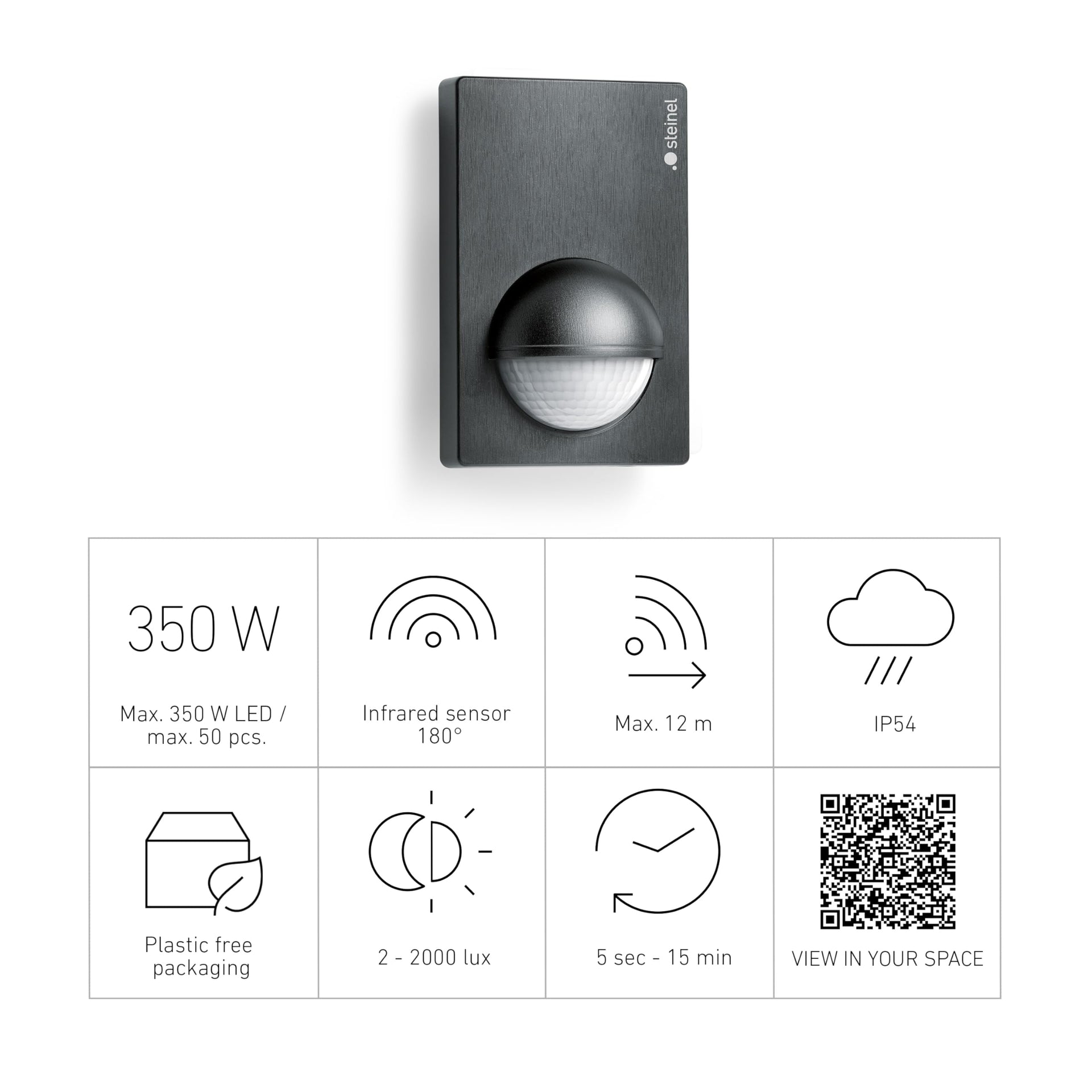

• Highly sensitive infrared pyrosensors enable continuous monitoring with a switching load of up to 1000 W (max. 350 W LED / 50 units), suitable for both indoor and outdoor use.

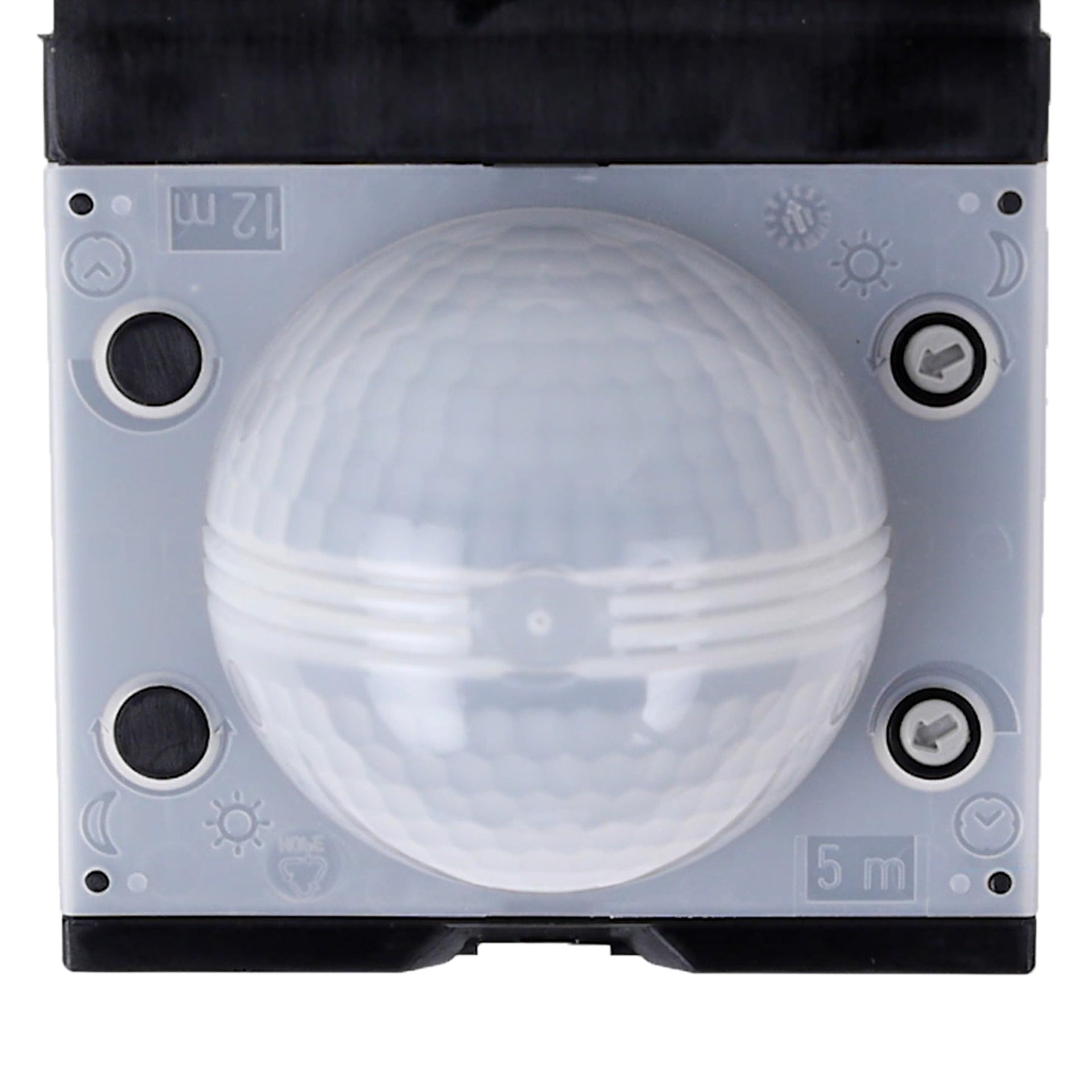

• The range can be adjusted by rotating the multi-lens to a maximum of 12 m or a maximum of 5 m. The time (5 s - 15 min) and twilight threshold (2-2000 lx) can be continuously set using rotary knobs.

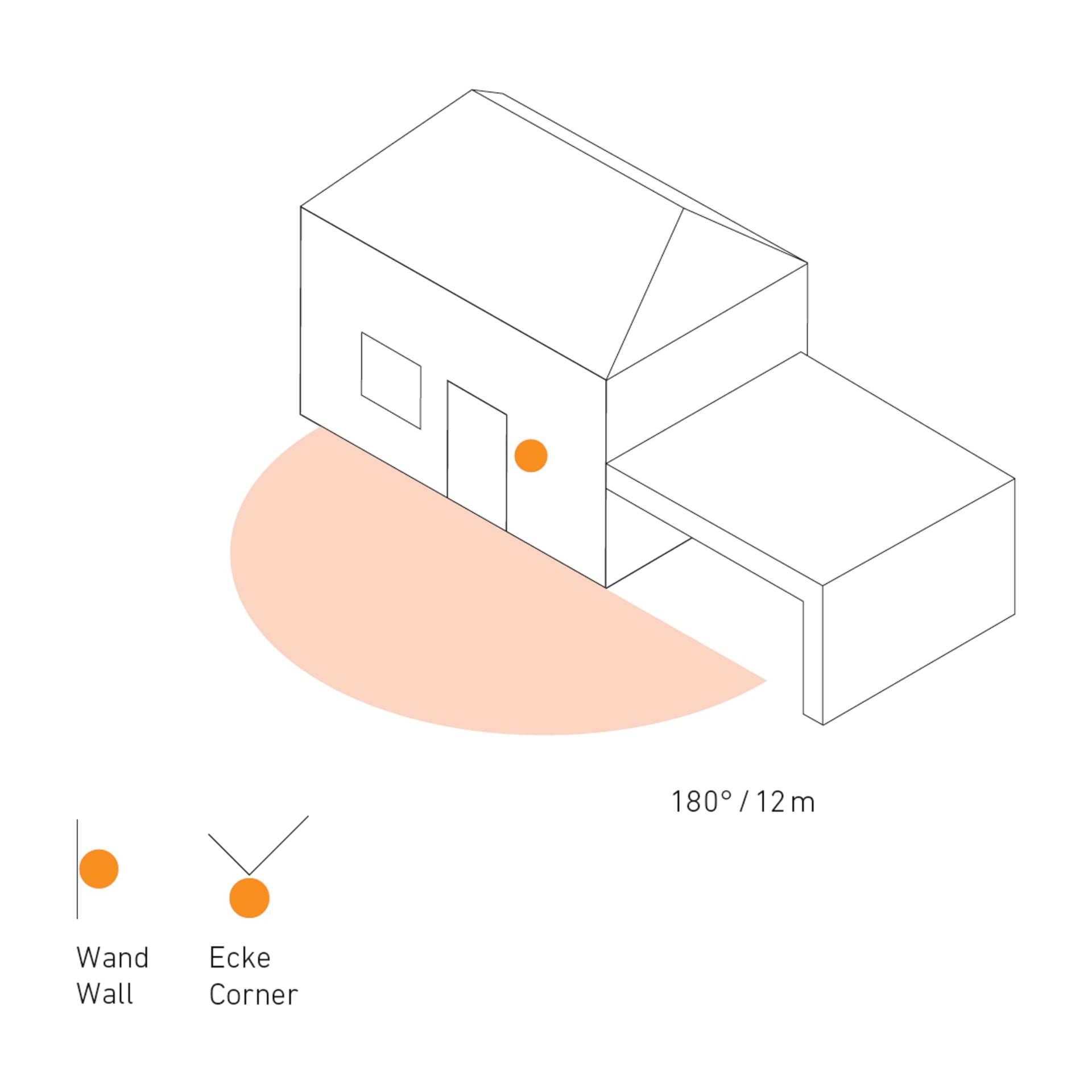

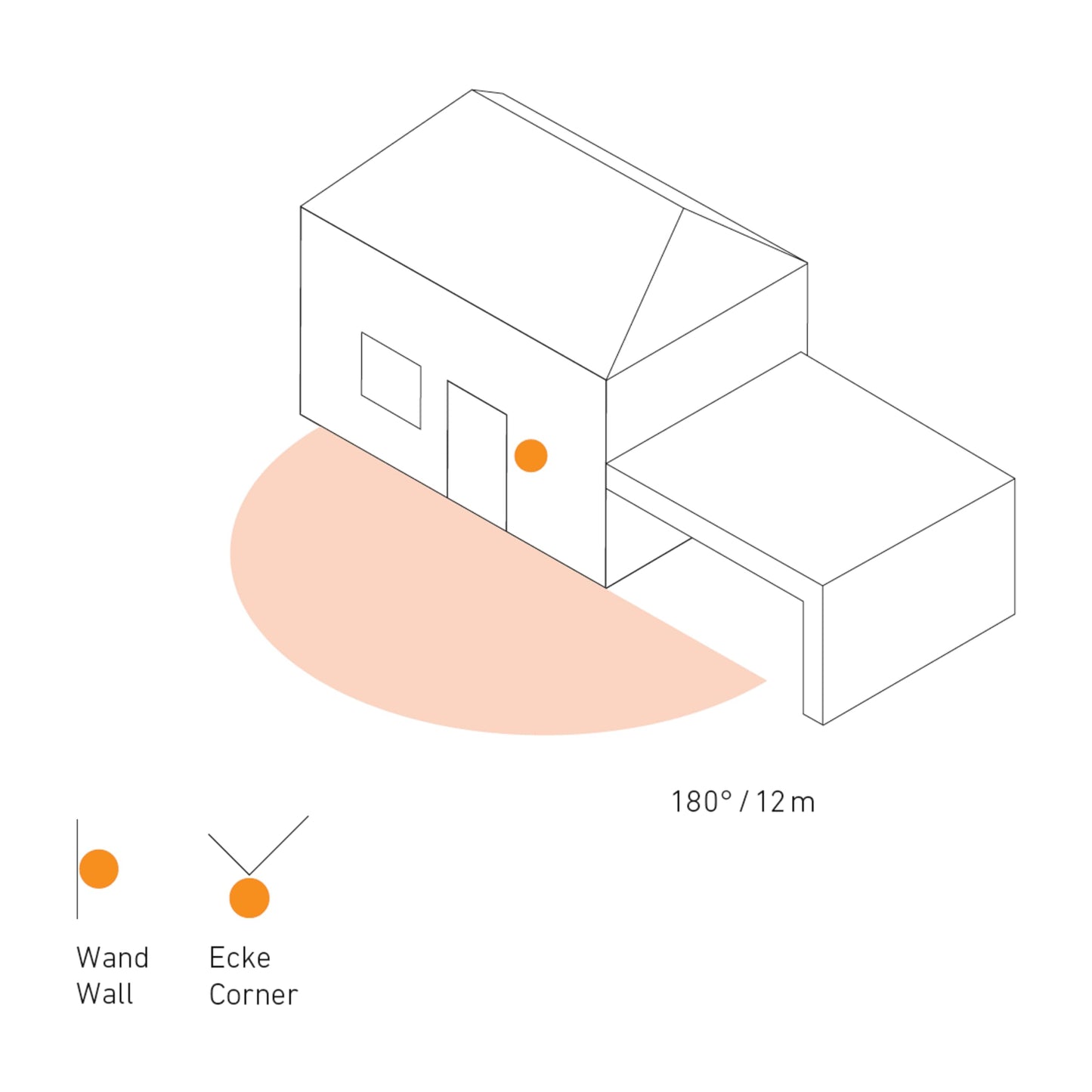

• The 180° detection range of the LED motion sensor can be limited using the included cover plates.

• The clearly arranged connection area ensures easy installation, both surface-mounted and flush-mounted.

• Package contents: Mounting materials (2x screws, 2x plugs, sensor cover plates); Dimensions (L x W x H): 5.6 x 7.6 x 12 cm; Weight: 0.13 kg; Power supply: 230–240 V / 50 Hz; Article number: 603113

Category: Motion detector
