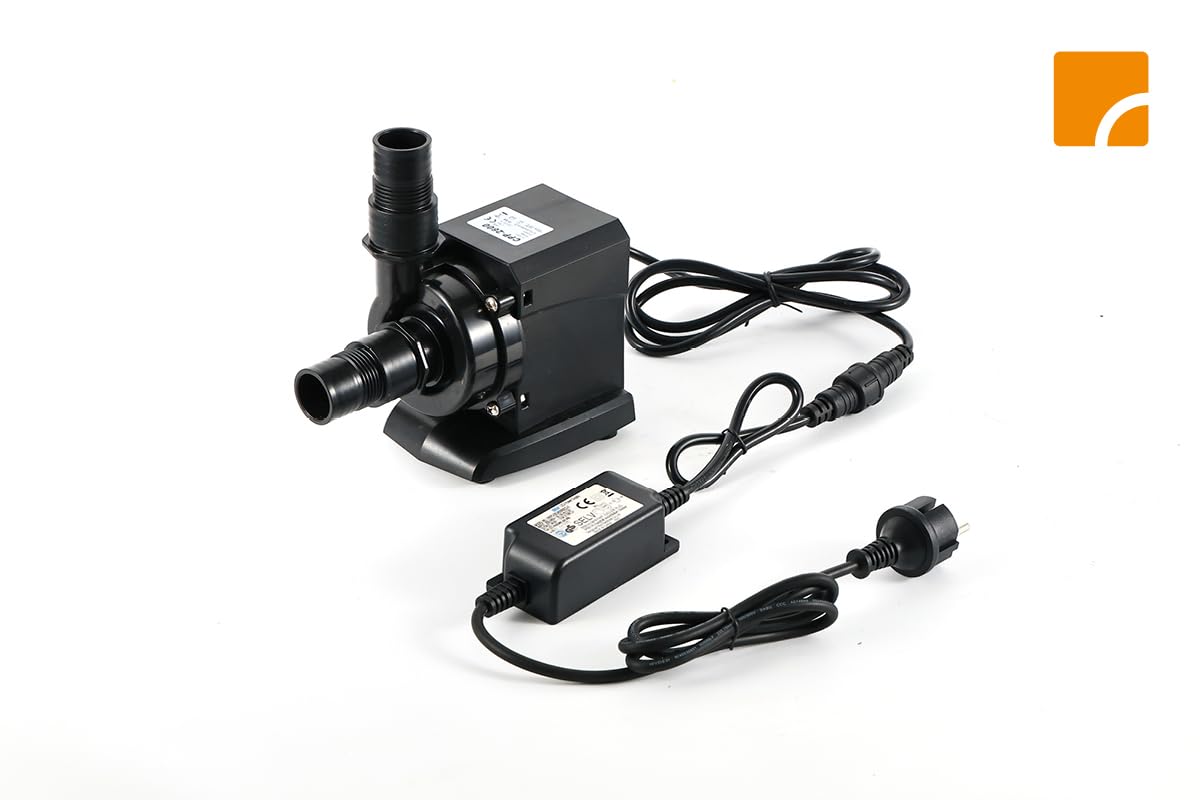

STEINBACH circulation pump with PV panel – 040613 – pump output 3,000 l/h – for pools with a water capacity of up to 19,000 l – with an included foldable 30 watt PV panel

Pool pumps are the power plant of the pool circuit. The SPS 75-1 filter pump has a pump output of 8,520 l/h. The connection for the self-priming pump with pre-filter is 230 V/450 W. This filter system can be used for pools with a water capacity of approx. 33,000 l. The hose connection is Ø 32/38 mm. The pump can be used up to a maximum water temperature of 35°C and a maximum pool size of 33,000 liters. Technical data: For filter system Comfort 50, Classic 400 230 V/450 W Pump output 8,520 l/h Max. pumping height 9 m Self-priming pump with pre-filter Connection Ø 32/38 mm Maximum water temperature 35 °C Maximum pool size 33,000 liters Noise level approx. 70 db

• The circulation pump with PV panel offers an environmentally friendly solution for heating your pool
• With a pump output of 3,000 l/h and a delivery height of up to 2.0 m, the non-self-priming pump is ideal for swimming pools with a water capacity of up to 19,000 l

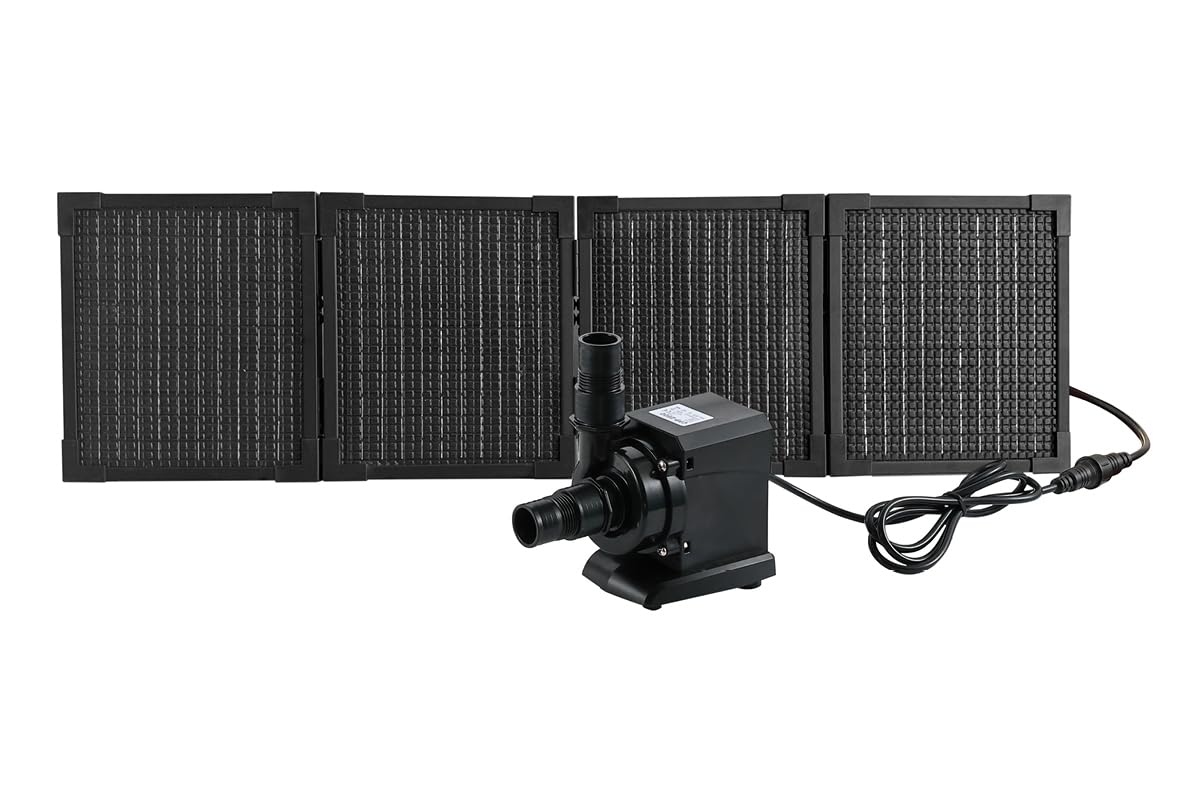

• Thanks to the included foldable monocrystalline silicon 30 watt PV panel, the pump works completely autonomously
• The circulation pump acts as a solar film booster by pumping cold water upwards and creating a continuous flow under the solar film. This means the warm water is evenly distributed throughout the pool

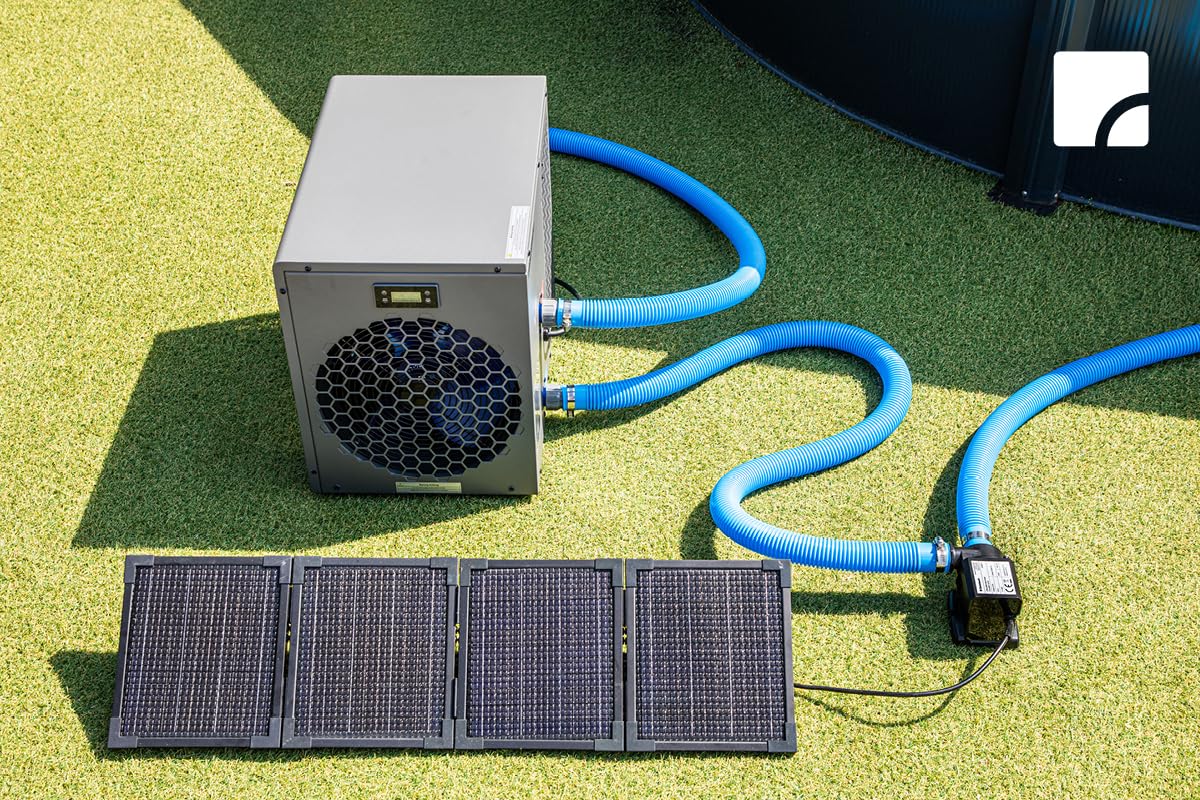

• As a heat pump booster, the pump takes over the volume flow via the heat pump, meaning that the “heating” and “filtration” functions can be separated and carried out more efficiently

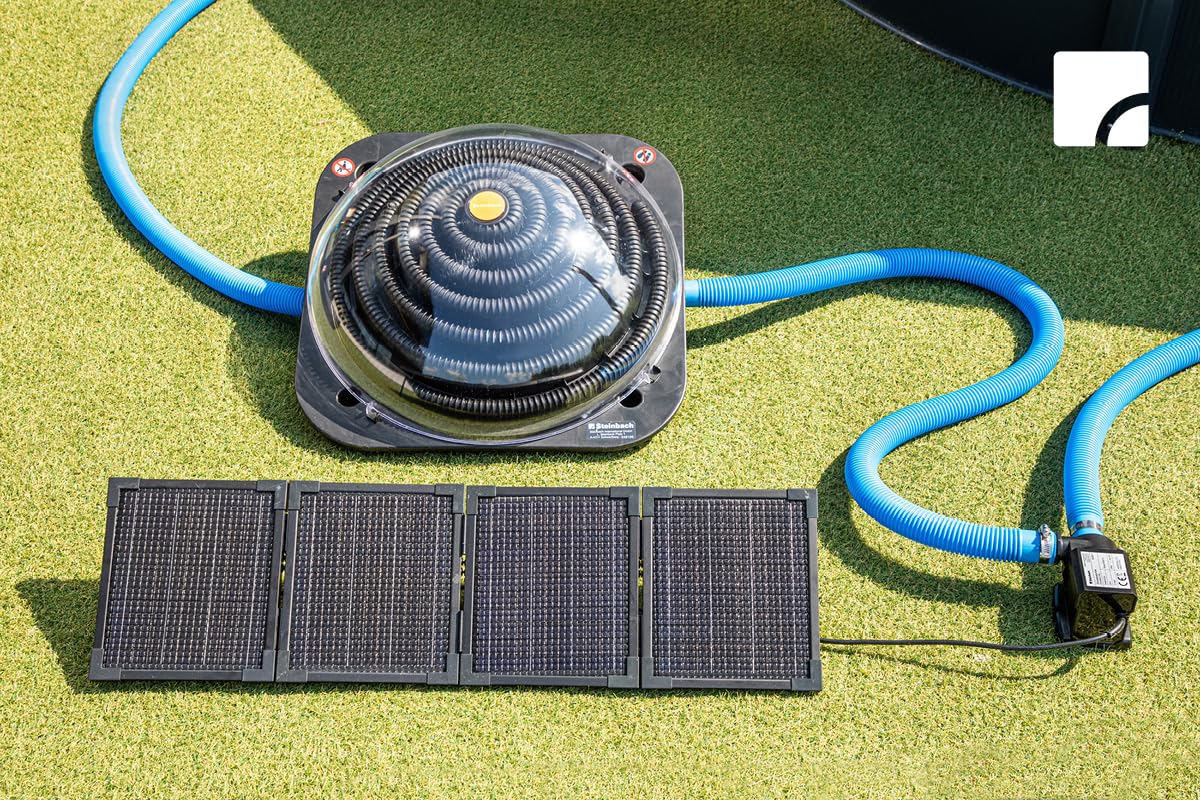

• The circulation pump also proves to be extremely useful as a solar collector booster, as it ensures the volume flow via the solar collector when there is sufficient sunlight, thus maximizing efficiency
• Connection size: Ø 32/38 mm / 1" AG | Connection plug: 2-pin round plug, max. 10 A, IP68

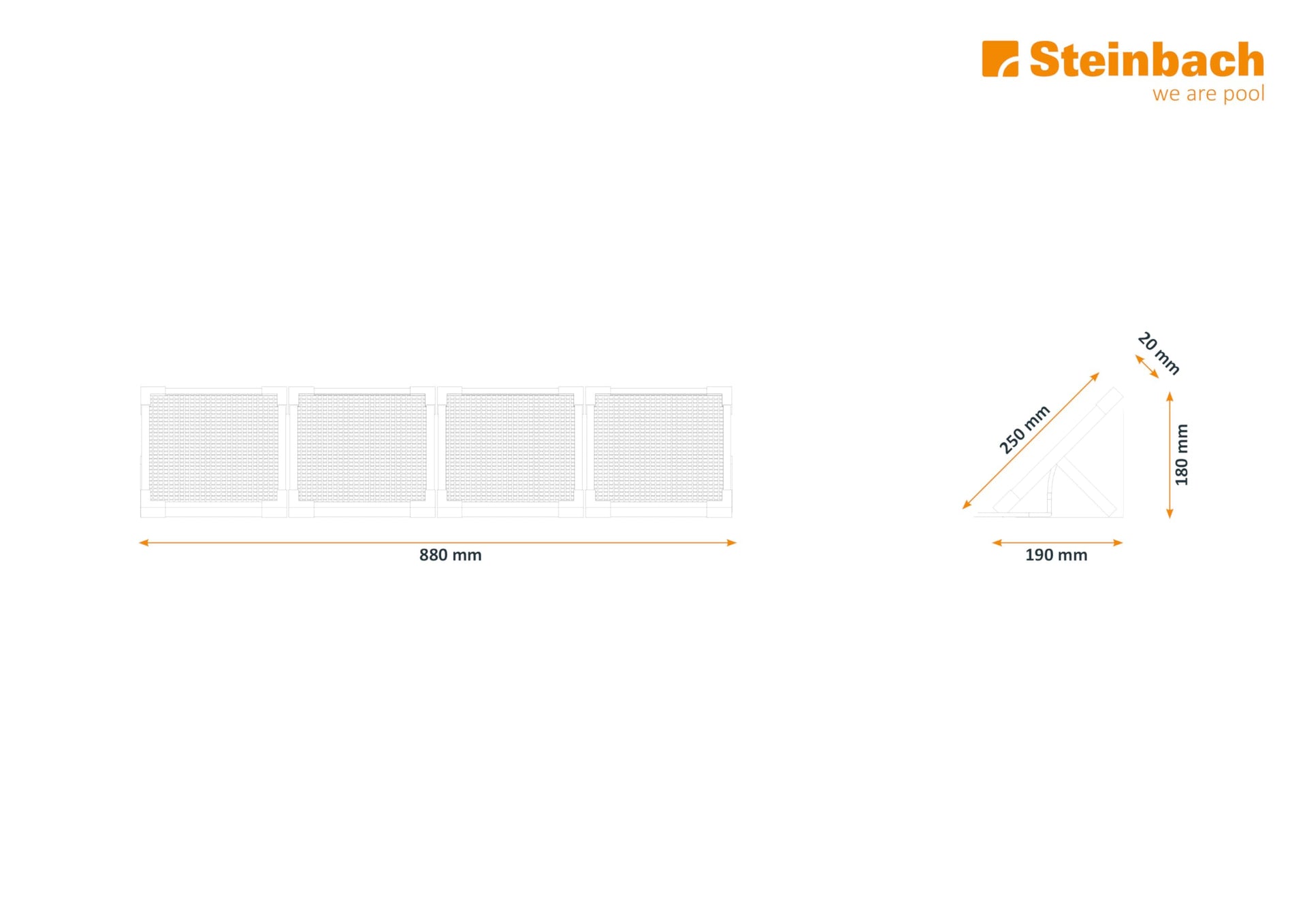

• Pump dimensions: 25 x 10.5 x 18.5 cm (L x W x H) | Dimensions PV panel: 88 x 25 x 2 cm (L x W x H) / folded: 25 x 22 x 8 cm (L x W x H)
• Scope of delivery: 1x pump, 1x PV panel, 2x hose nozzle, 2x O-ring, 2x T-connector
• Attention: NOT suitable for salt water!

Category: Pump
